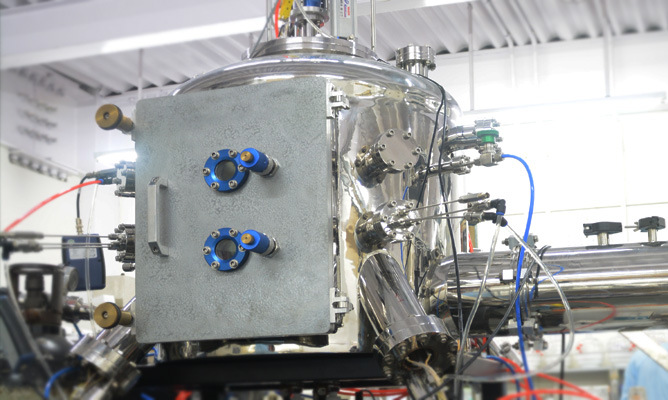

Thermal Evaporator


Indigenously developed thermal Evaporator system capable of evaporating wide variety of material include organic, inorganic and metal. In this thermal evaporator vacuum is achieved with the HHV Hi-Vac system and customized electronics for automatic feedback control of deposition rate.
Make and Model:
Indigenously developed with Excel Instruments, Mumbai.
  • Four effusion cells (max. Temp. 500°C
  • 6” Rotating substrate (max. Temp. 200°C)
  • In-situ deposition rate and thickness measurement
  • Currently used for co-evaporation of organic inorganic perovskite material.
Available modes for use:
Organic, Inorganic, Metal
Whether facility is open to external users? : No
Devices and Interfaces Lab, Transit Building, near main power house, IIT Bombay, Powai, Mumbai-400076.
Contact Details:
Convener/Incharge Name : Prof. Shaibal K. Sarkar,
Dept, of Energy Science and Engineering.
