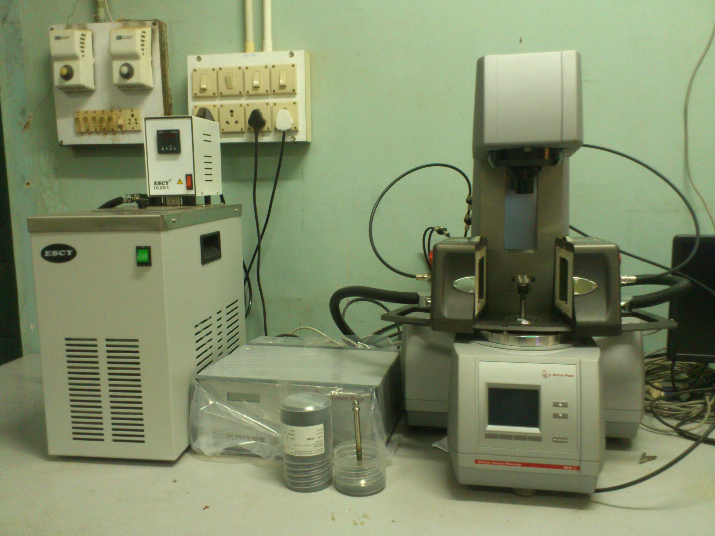

MCR - Modular Compact Rheometer

Introduction:
The modular compact rheometer series incorporates an EC-motor and is designed for a wide range of measurement tasks. Temperature control and sample specific accessories adapt the instrument to the desired application. The moveable measuring head ensures sufficient space for sample loading and trimming.


Make and Model:
Anton Paar Germany GmbH, MCR 52 modular compact rheometer.

Specification/Features:
       Powerful, synchronous EC motor drive
       Fully digital instrument employing the
 latest DSP (Digital Signal Processing) technology
       High-precision air bearing
       Temperature accessories in the
 temperature range from ambient  to 1000 ° C
       Max. heating rate – 50K/min.
        Max. cooling rate – 30K/min
       Air circulation/gas Flow rate – 0.4 l/min to 0.7 l/min.
       Max pressure – 6 bar

Available modes for use:
Viscosity measurement.

Whether facility is open to external users? : No

Location:
Solar lab, IIT Bombay, Powai, Mumbai-400076.

Contact Details:
Convener/Incharge Name : Prof. Manaswita Bose, Dept, of Energy Science and Engineering.
